Sheet or Panel& PVC foam board

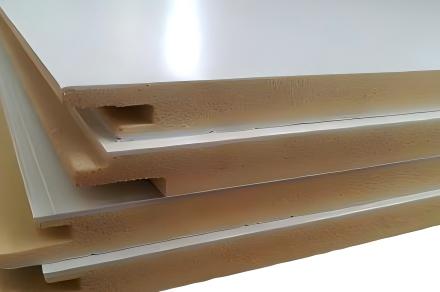

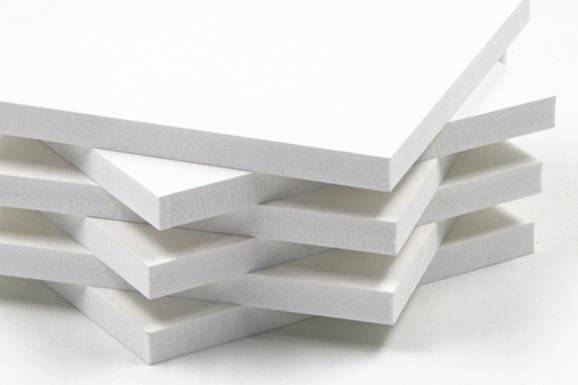

Applications:Furniture boards, cabinet boards, sanitary boards, construction formwork, advertising boards, SPC flooring, WPC flooring.

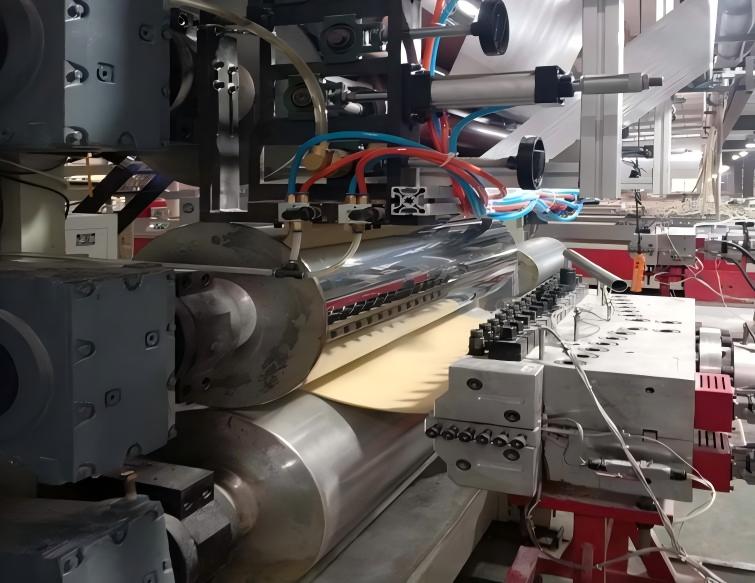

Equipment Configuration: 80 or 92 extrusion line.
Mold Configuration: Die head + calibration mold + distributor.
Product Density: 0.30、0.45-0.5、0.65-0.75 g/cm3
Suitable Materials: PVC foam, PVC + wood powder, rigid PVC sheet, PE/PP high-filled sheet.
Surface Co-extrusion Options: PMMA, ASA, soft PVC, multi-color co-extrusion, foam co-extrusion.
Classification of Sheet and Plate Mold Structures
Die head without flow-blocking adjustment rods Foamed sheet die head with adjustment rods
Double flow channel (skin foaming) die head
Cast film die head Flow distributor

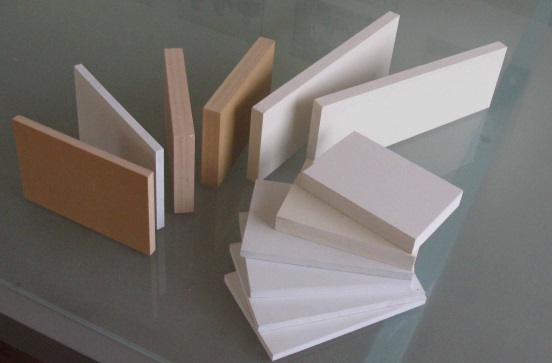

PVC foam board mold
Wide thickness adjustment range, equipped with cooling and skin-forming plates, ensuring high
surface hardness of the product.

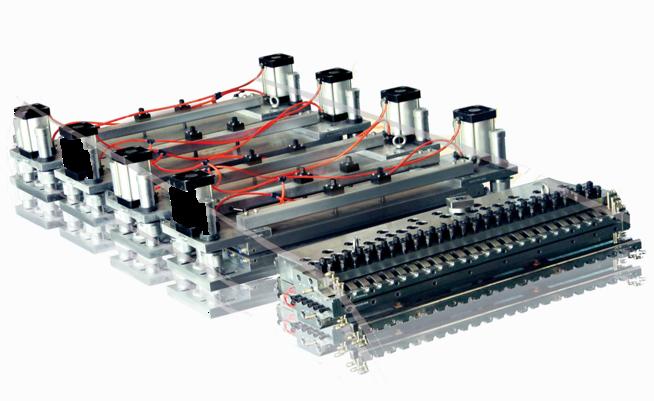

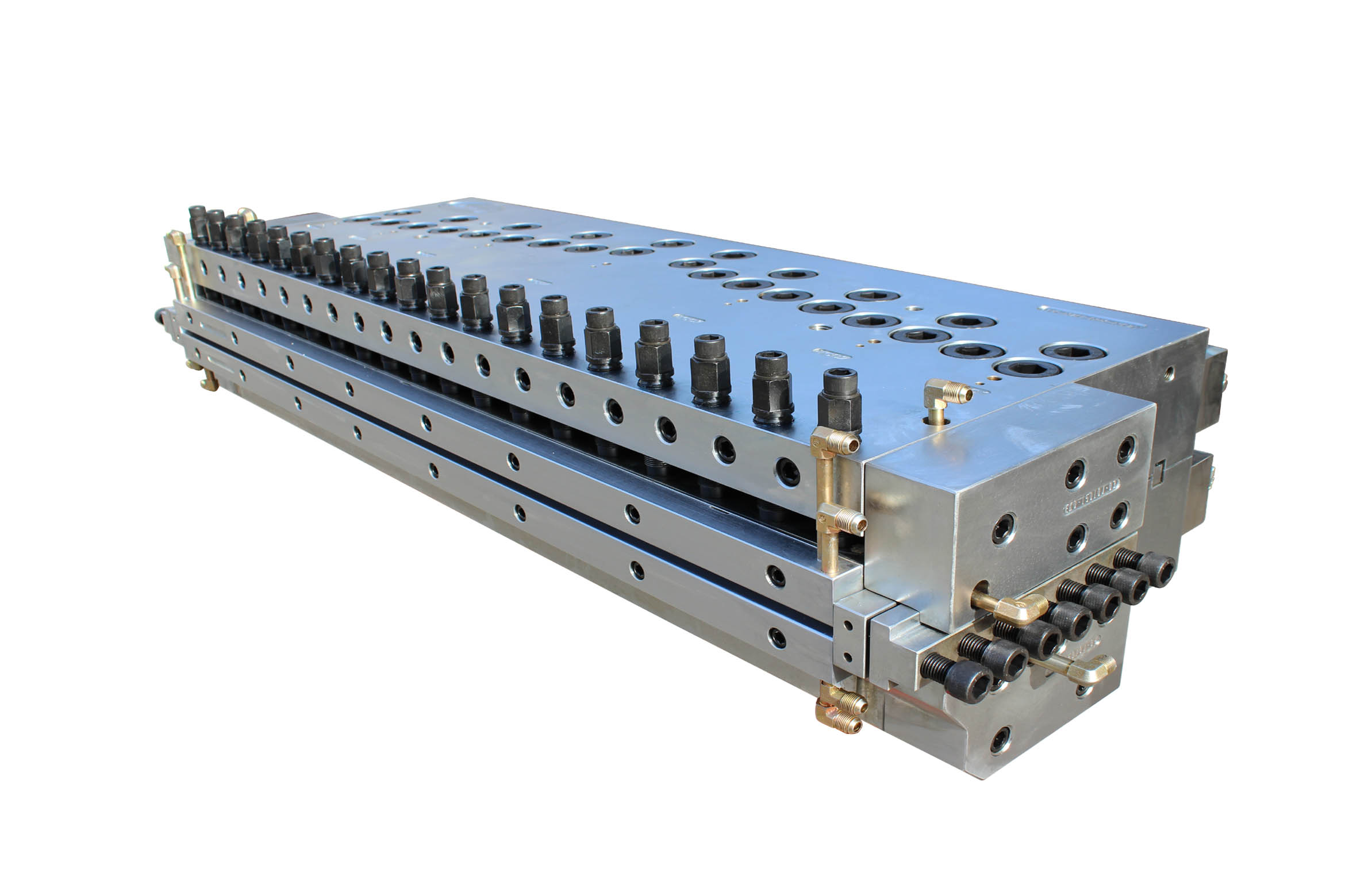

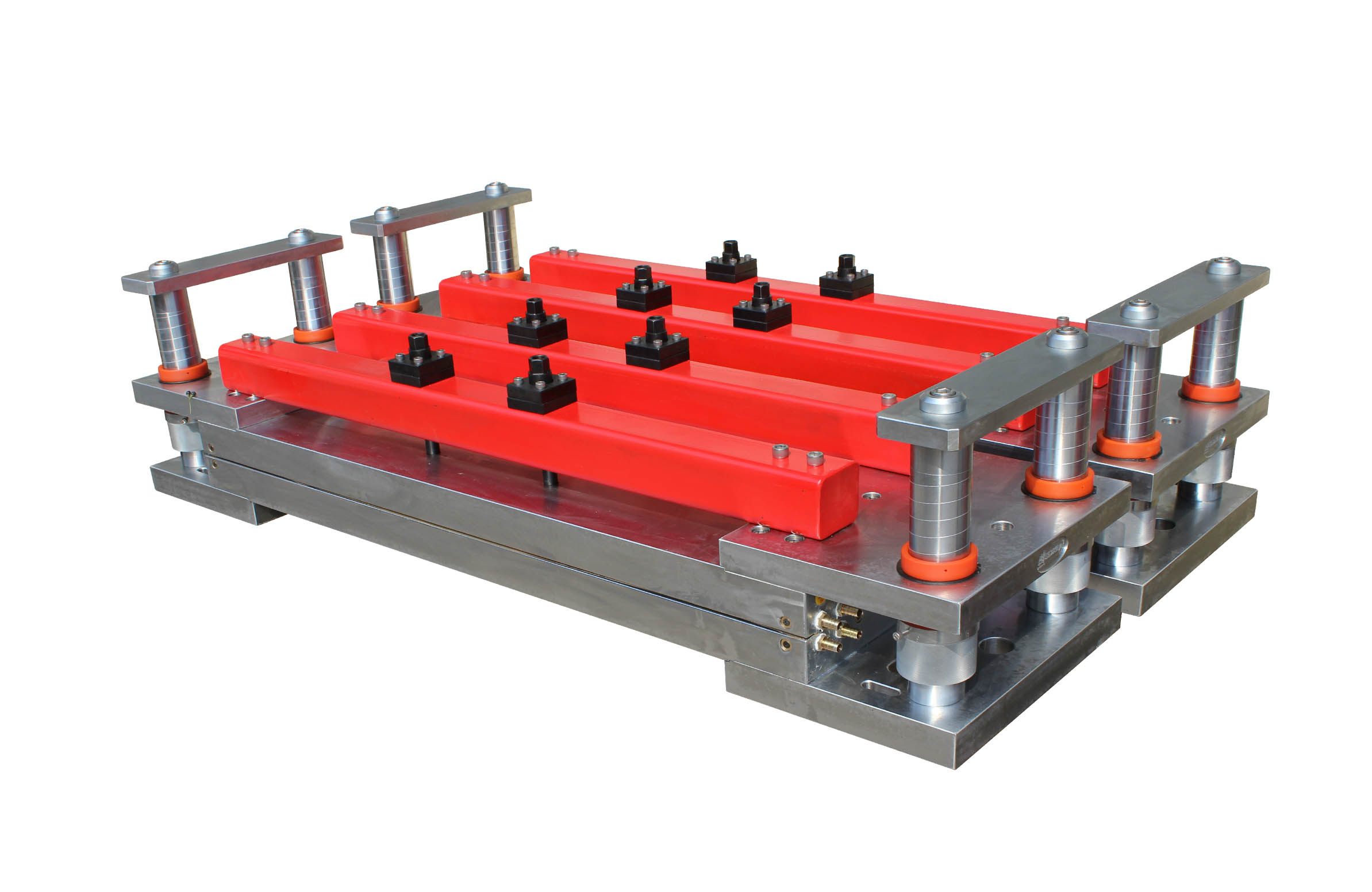

PVC foam board die head Foam board calibration mold (500 mm width) Die head + 4-section calibrator

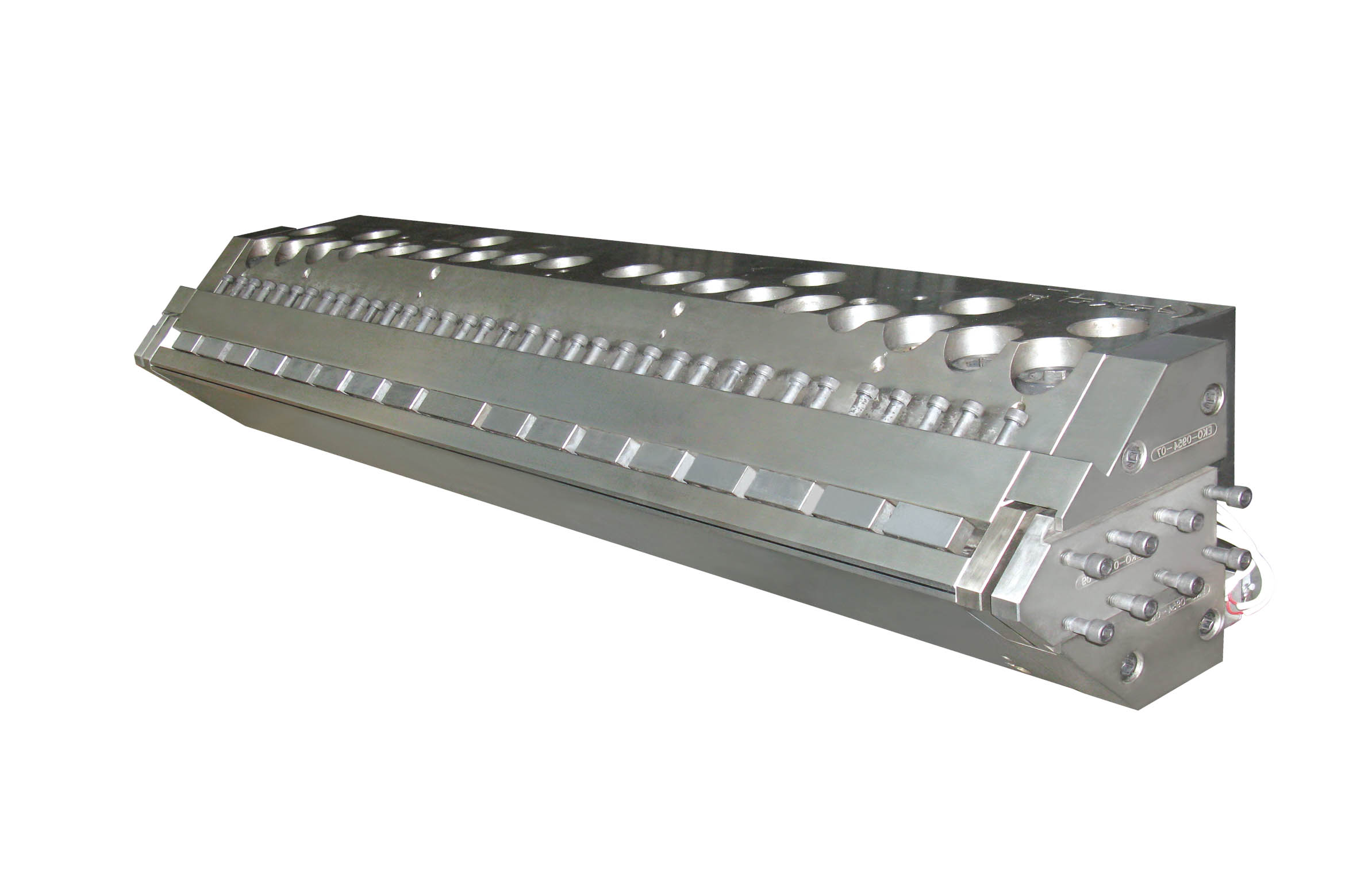

Die head without adjustment rods
The board surface is glossy and smooth; the formulation must be stable.Widely used in PVC advertising boards.

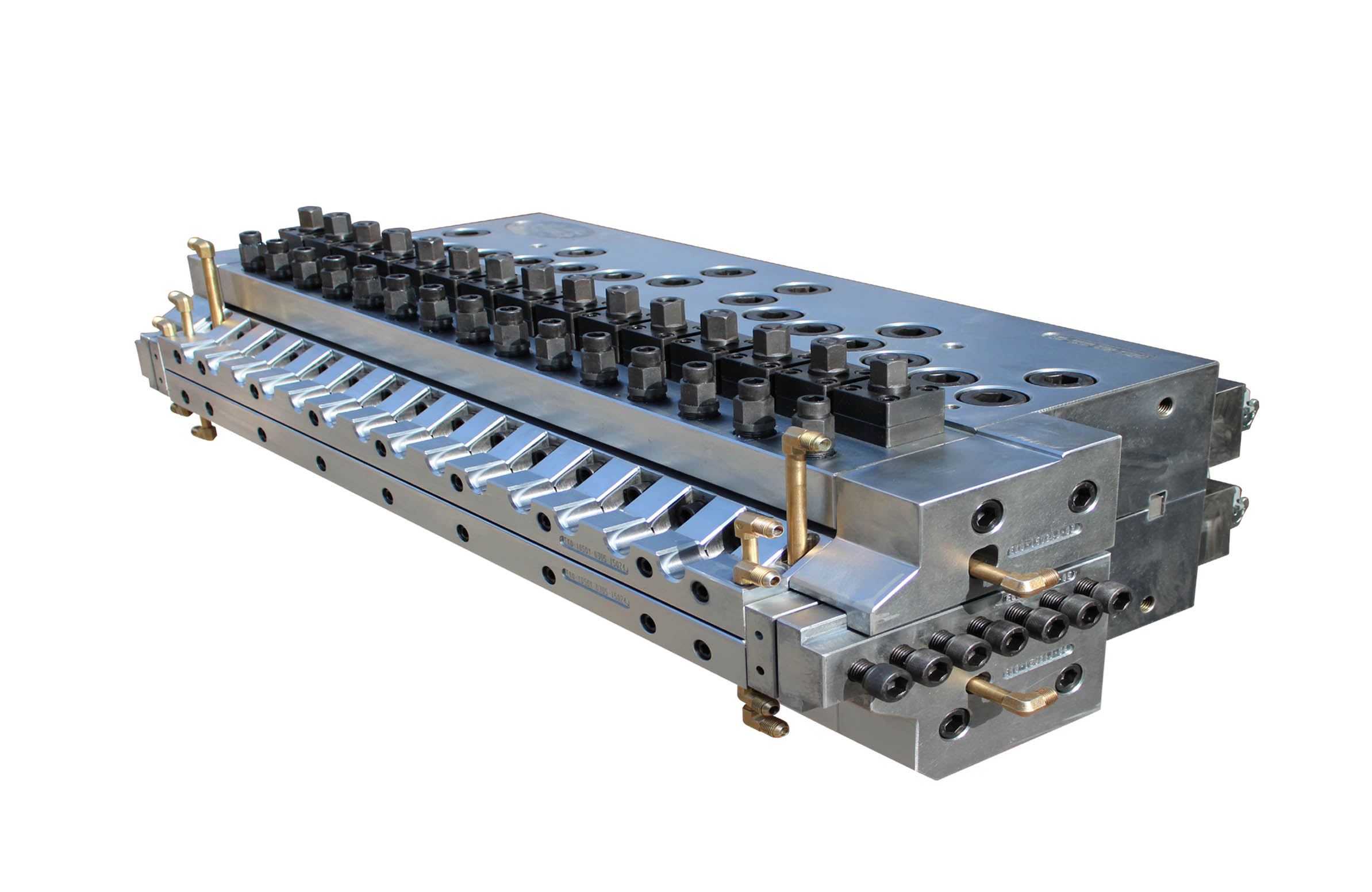

Foamed sheet die head with adjustment rods
Adaptable to various formulations, flow rate adjustable.

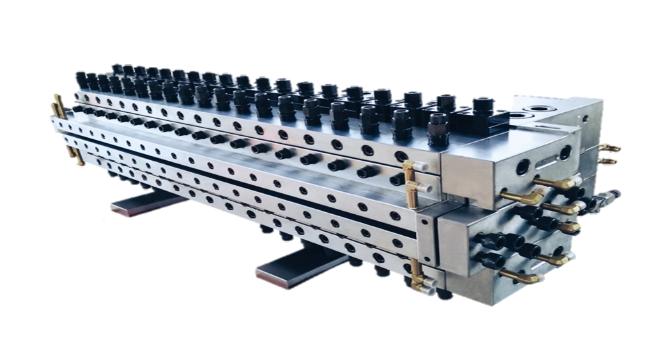

Double flow channel (skin foaming) die head
Suitable for thicker sheets with a harder core. Less prone to material scorching, smooth surface,
and longer production duration.
Cast film die head
Used for agricultural film and packaging film production.
Flow distributor (for co-extrusion)
Used for AB single-side co-extrusion and ABA double-side co-extrusion
SPC flooring production.

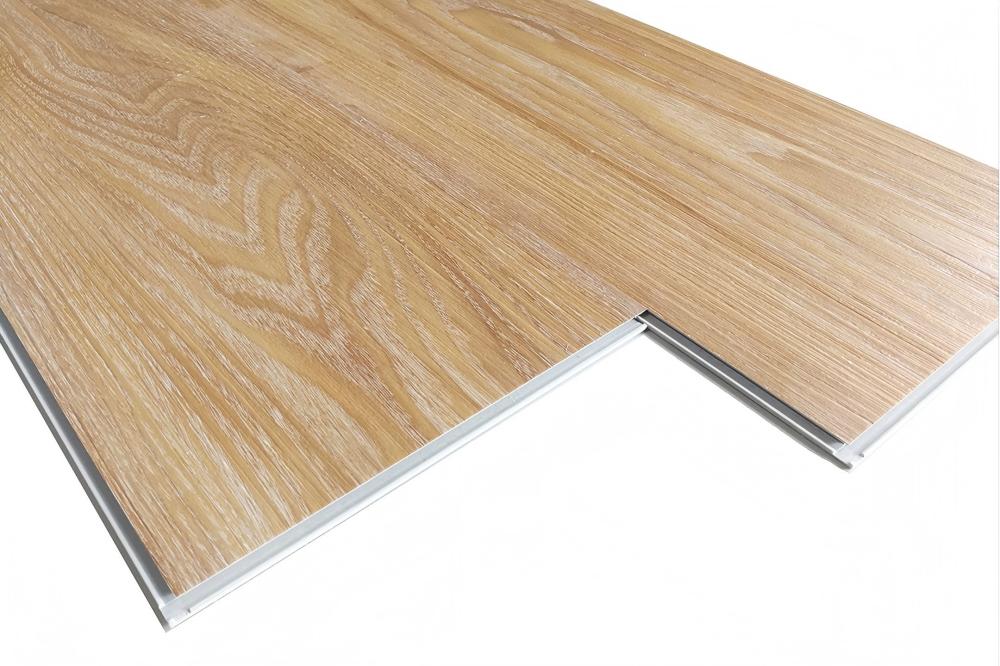

WPC flooring and SPC flooring

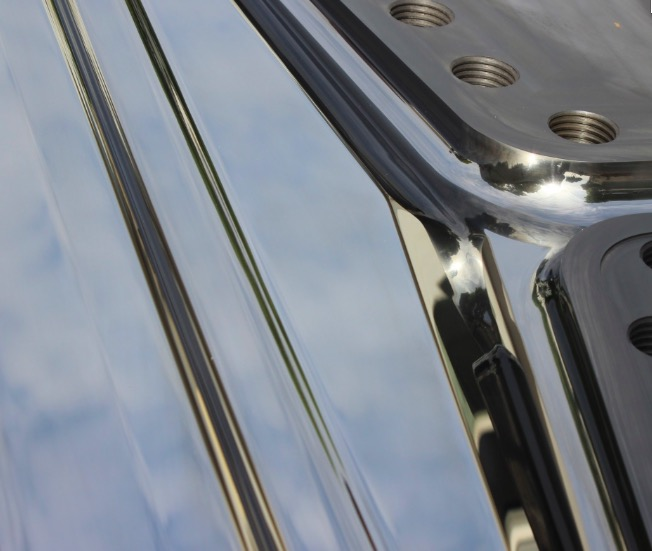

Patented cooling and skin-forming technology gives smooth, hard surfaces.
Designed for uniform and stable material flow, suitable for various formulations.
Enables online thickness adjustment of the sheet without replacing components.

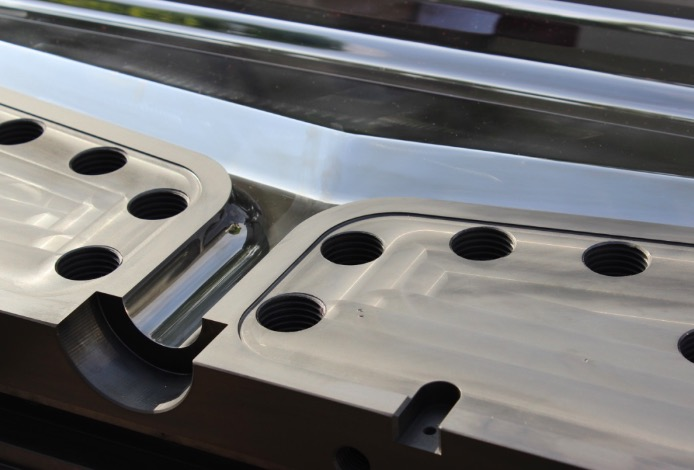

Streamlined design eliminates material backflow, ensuring uniform and stable foaming.
Co-extruded surface is fine-textured, uniform, and consistent in thickness.
